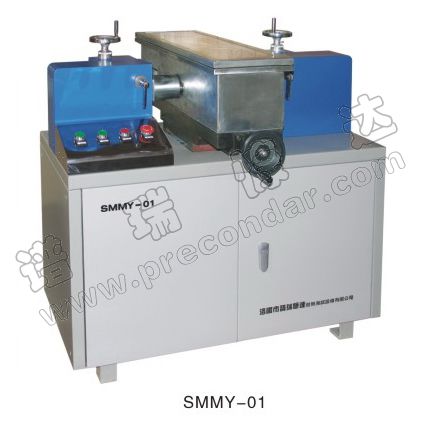

SMMY-01 double face grinding prototype
Smmy-01 double side grinding prototype is a special equipment for grinding and polishing the parallel surfaces of various sam
Smmy-01 double side grinding prototype is a special equipment for grinding and polishing the parallel surfaces of various samples. The equipment is equipped with diamond grinding wheel, and the sample is prepared by hand. The parallel degree of the sample is good and the surface is smooth.
| 2个磨轮直径 Diameter of two abrasive wheels(mm) | φ100/φ125 |
| 磨轮转速 Rotated speed of abrasive wheel(r/min) | 2880 |
| 工作台形程 Workbench range(mm) | 160 |
| 工作台尺寸 Workbench size(mm) | 650×200 |
| 两磨轮调节间距 Distance between two abrasive wheels(mm) | 30～120 |
| 主机尺寸 Size of mainframe(mm) | 1000×900×1020 |
| 电源 Power supply | 三相四线 380V 50Hz 0.55×2kW |
| 净重 Weight(kg) | 200 |
