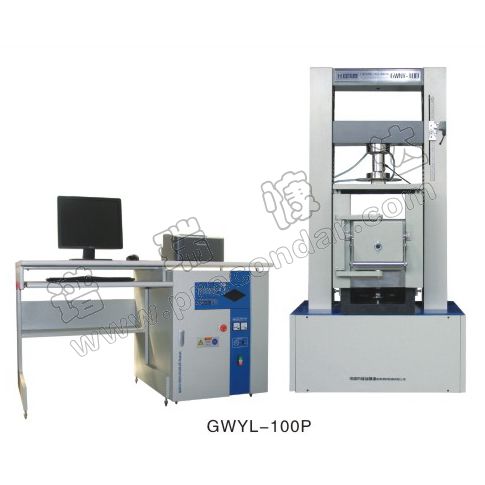

GWYL series high temperature pressure testing machine
This testing machine is used to measure the normal temperature and high temperature compressive strength of refractory brick,
This testing machine is used to measure the normal temperature and high temperature compressive strength of refractory brick,
This testing machine is used to measure the normal temperature and high temperature compressive strength of refractory brick, hollow brick, stone, wood, ceramics, cement and concrete. The equipment meets the technical requirements of the national standard Yb / T2208 "test method for high temperature compressive strength of refractory castables", and can complete the test of high temperature compressive strength. It has the characteristics of wide test range, high precision, multi-purpose, stable and reliable operation. IPC industrial computer is used for automatic control, with friendly interface, high precision of temperature control and loading, dynamic real-time display of temperature time and pressure time curves, and original data can be converted into excel storage format, and test reports can be queried and printed at any time.
型号/参数 Model/specification | GWYL-100 | GWYL-200 |
最大试验力 Max.load(kN) | 100 | 200 |
负荷测量精度 Loading accuracy(%) | ±1 | ±1 |
使用温度 Working temperature(℃) | 1400 | 1600 |
升温速率 Heating-up rate(℃/min) | 0~15 | |
试样个数 Quantity of samples | 3 | |

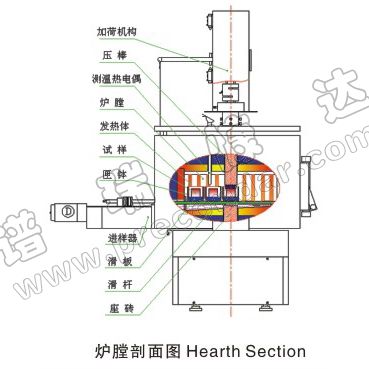

炉膛尺寸 Hearth size(mm) | 530×230×190 | |
主机尺寸 Size of mainframe(mm) | 1600×1050×2100 | |
控制柜尺寸 Size of control cabinet(mm) | 650×1400×800 | |
电源 Power supply | 380V 50Hz 20kW | |
重量 Weight(kg) | 1200 |
